IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar

Brand Name : VS

Model Number : VS-SSL-L

Certification : CE, CB, ROHS, AS Required

Place of Origin : Guangdong, China

MOQ : 20

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000pcs per Month

Delivery Time : 15-25 days

Packaging Details : ITEM: VS-SSL-L30 Lamp size: 550*255*90 mm, Solar panel size: 530*350*17mm, Ctn size: 610*155*435mm 1pc/ctn

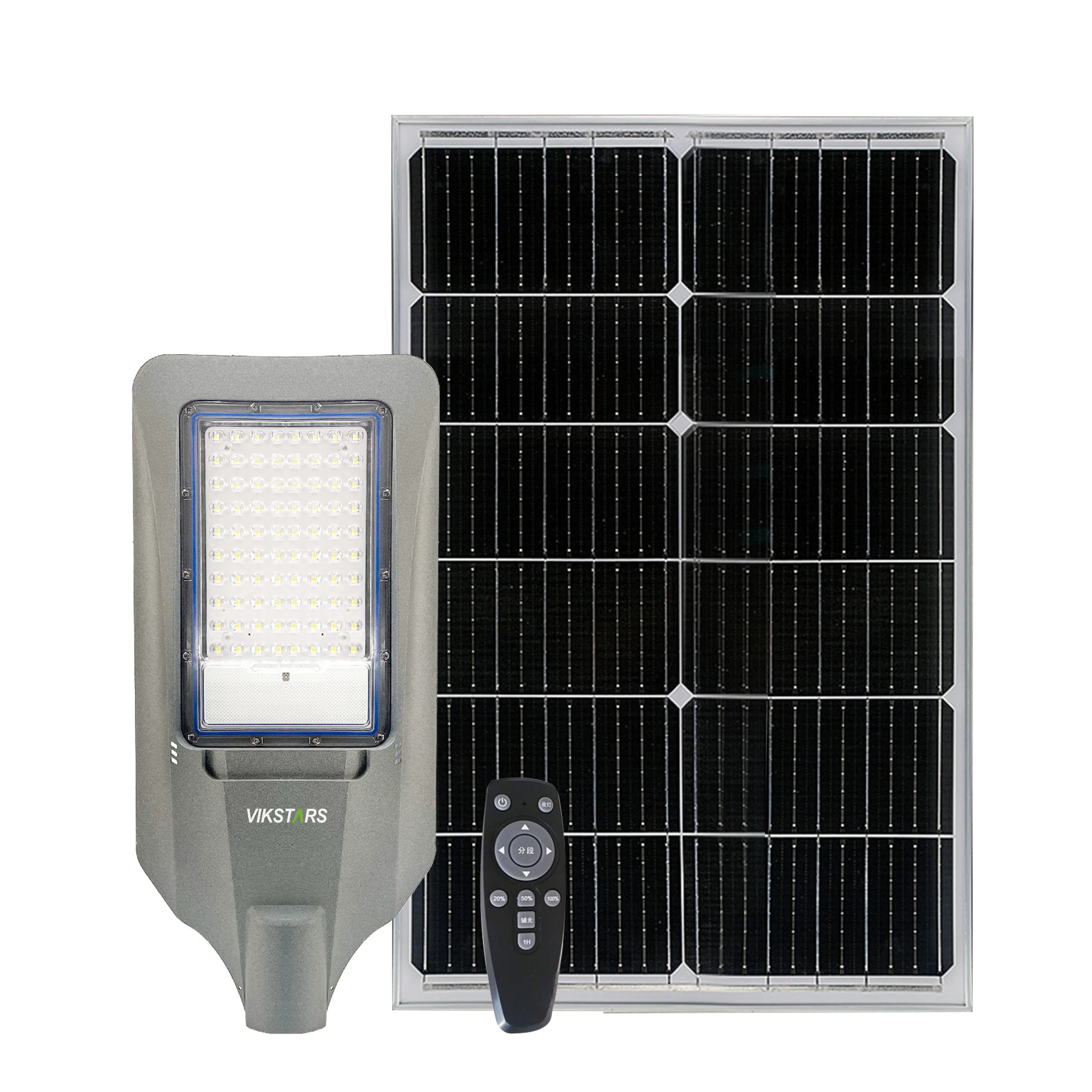

Product name : Solar Street Light L Series

Power : 300W 500W 600W 1000W 1600W

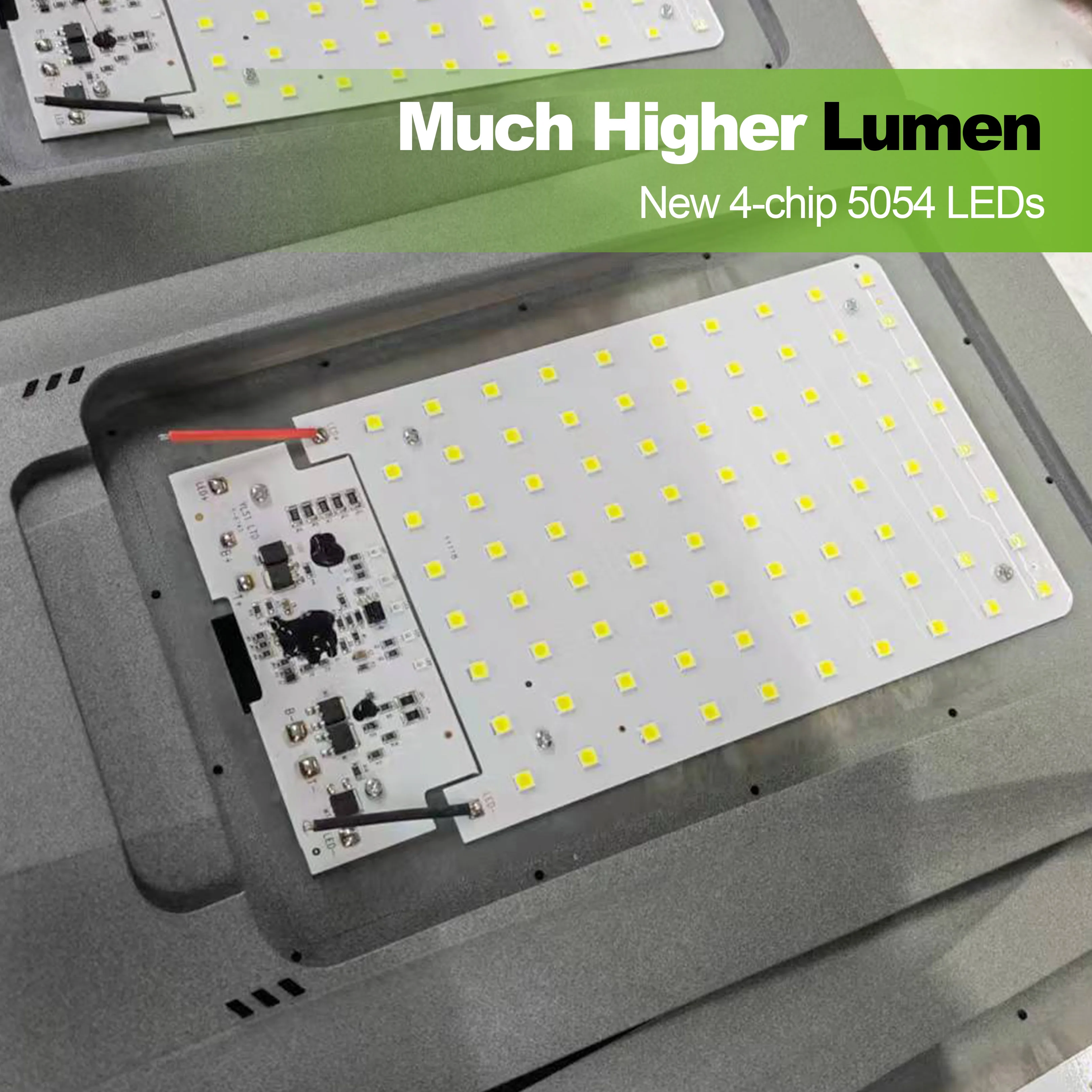

LED Chip : SMD5054/5050

Material : Aluminum+PC Cover

Lamp Luminous Efficiency(lm/w) : 170lm/w

Work Mode : Time control+ Light control remote controL

Waterproof : IP66

Application : street,main road, pathway,walkway,yard,park,landscape,square

Contact Now

IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar

PARAMETERs

Product Name	L Series - Split Solar Street Lights
Model No.	VS-SSL-L03	VS-SSL-L05	VS-SSL-L06	VS-SSL-L10	VS-SSL-L16
Power	300W Regular	500W Regular	600W Regular	1000W Customized	1600W Customized
Battery	3.2V 24AH Lithium	3.2V 24AH Lithium	3.2V 60AH Lithium	3.2V 100AH Lithium	12.8V 60AH Lithium
Solar Panel	Mono 5V 30W	Mono 5V 50W	Mono 5V 60W	Mono 6V 100W	Mono 18V 120W
Lumen	1760lm	2880lm	3840lm	5400lm	10800lm
LED Type	SMD5054*80PCS, 4chips 1530			Brightlux SMD5050/80pcs, 4chips 1734
Beam Angle	120°
CCT	Cold White (6500K)
Charge Time	4-6 hours
Lasting Time	3-5 Rainy days
Install Height	4-5m	4-6m	5-7m	6-8m	8-10m
Lighting Area	100㎡	200㎡	300㎡	400㎡	800㎡
Working Mode	Intelligent Light control + Remote Control + self-developed 365days discharging program
IP Rating	IP66

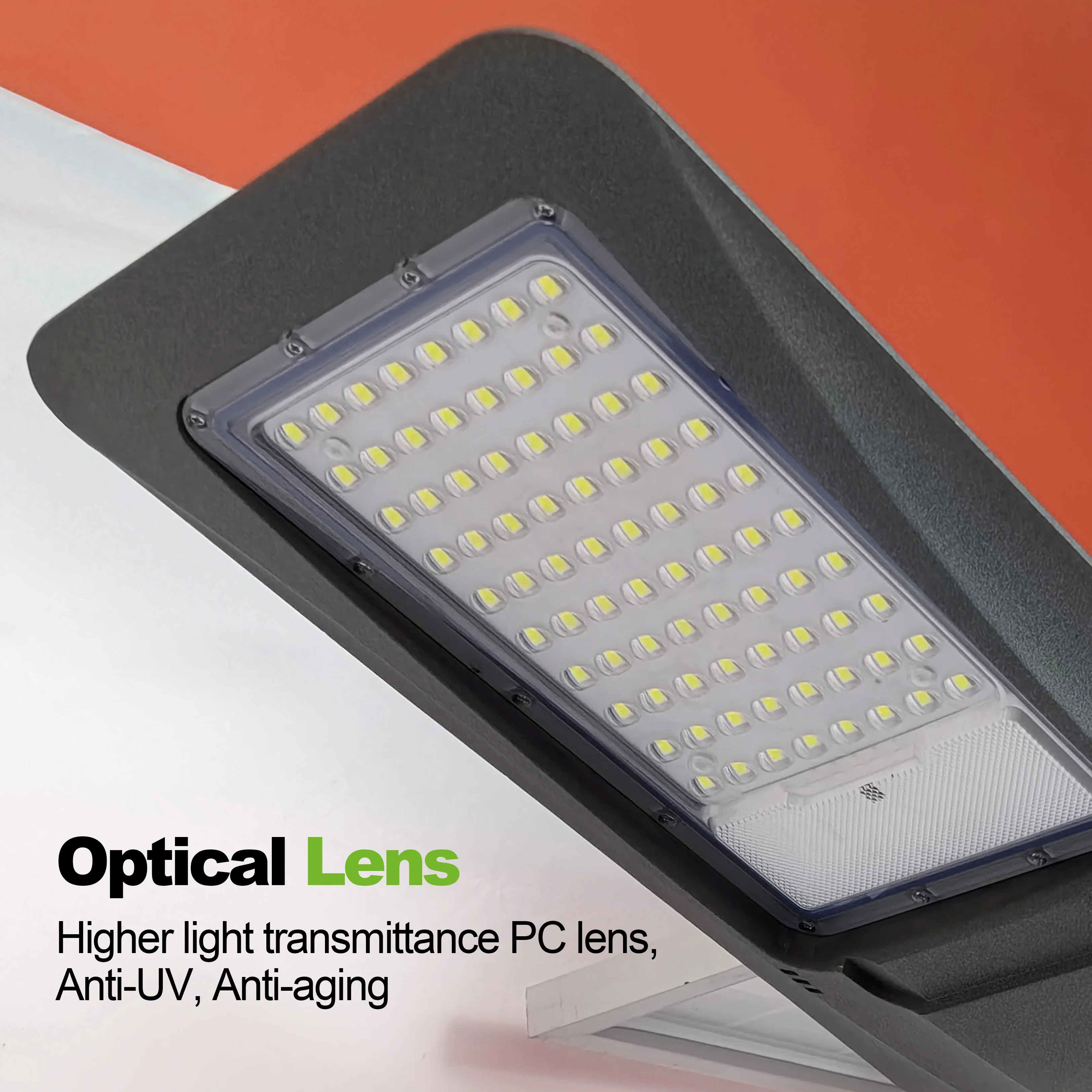

Materials/Color	Aluminum Heat Sink + PC lens / Sand Grey
Lamp Size	55025590mm (all watts same size)
Panel Size	53035017mm	67044525mm	67053525mm	67091530mm	670102030mm
Packing	Integrated regular packing			customized according to projects
Warranty	Regular 2 Years warranty

LIVE PHOTOs

Optional Solution

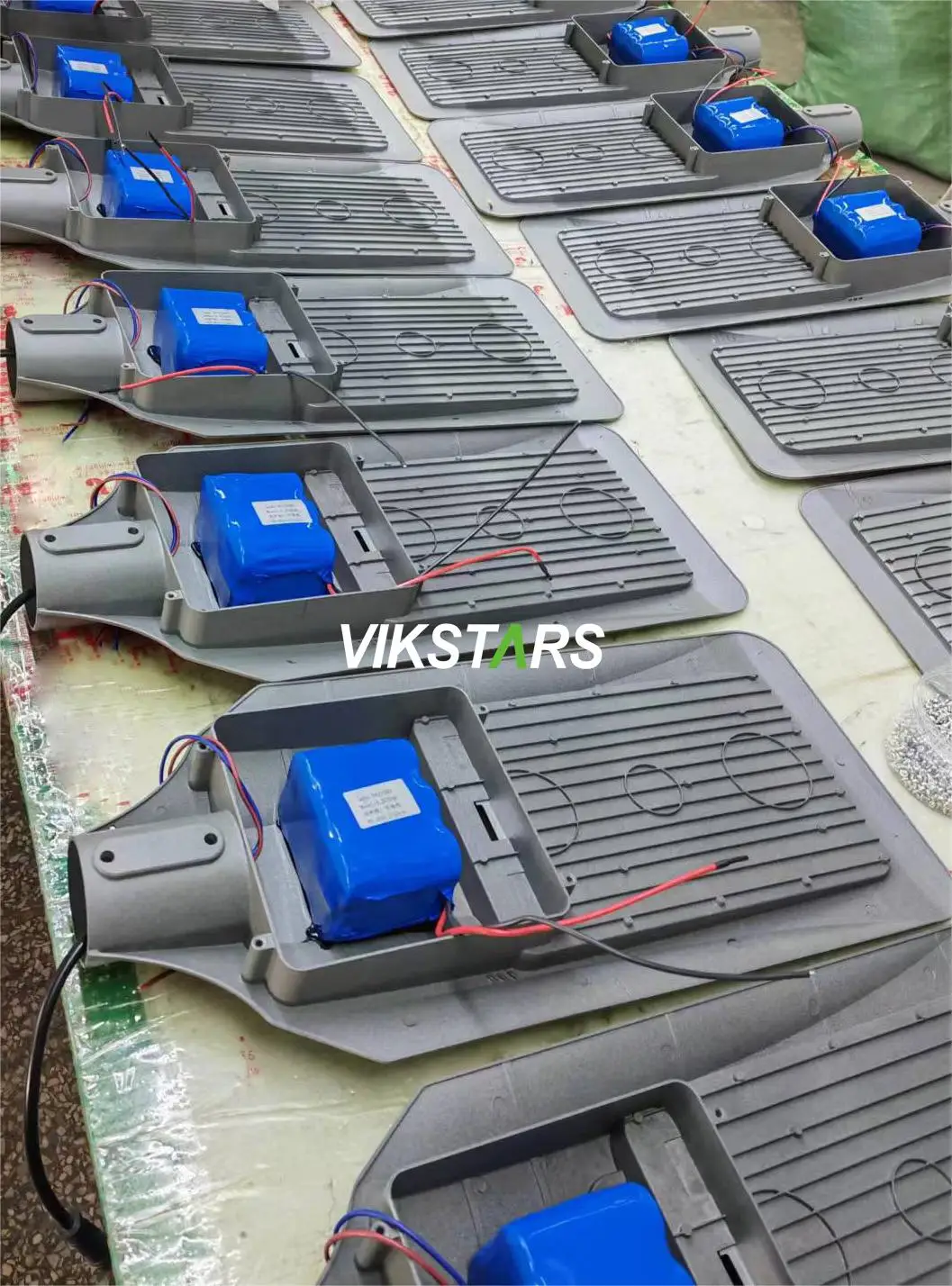

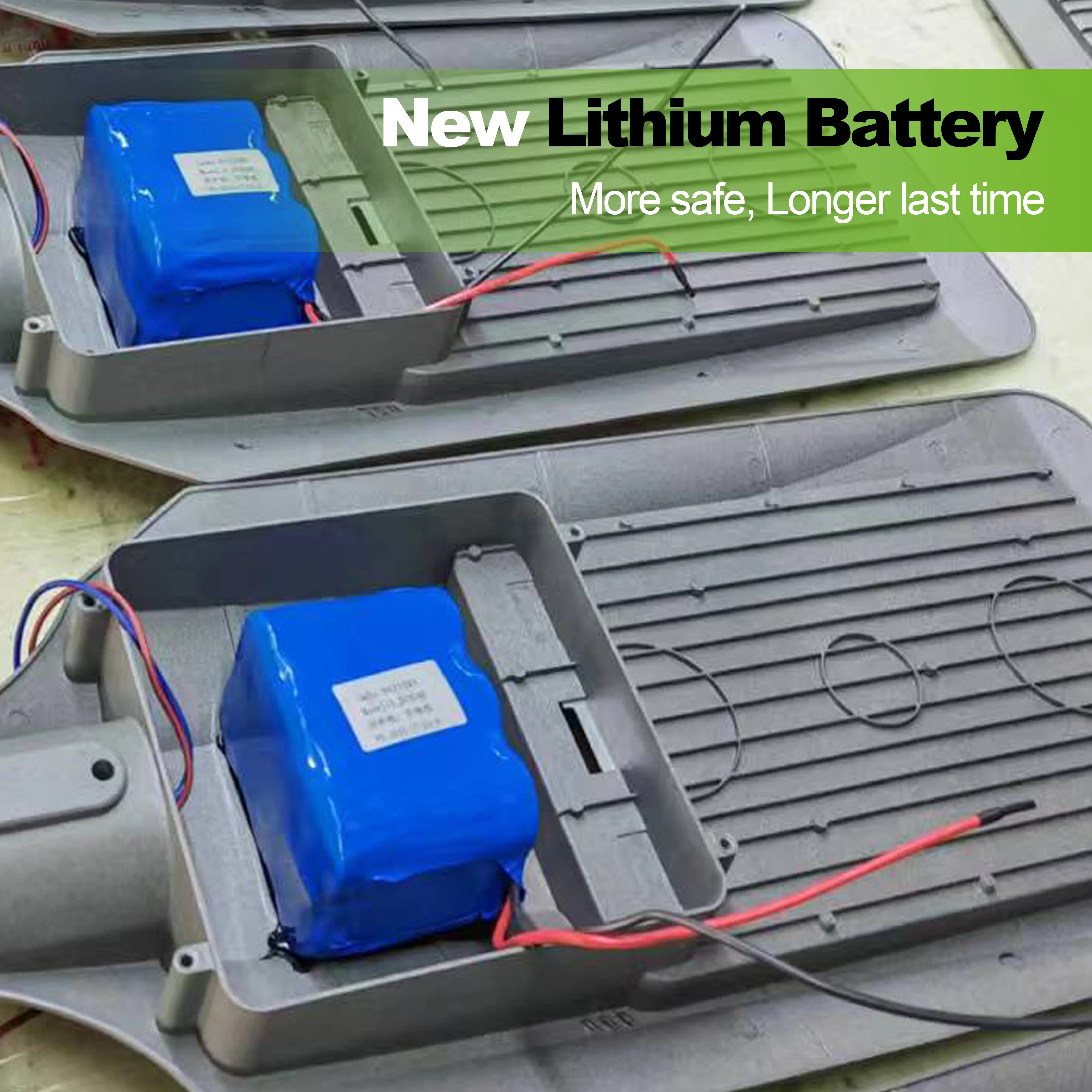

Regular Series--battery inner lamp

300w/500w/600w

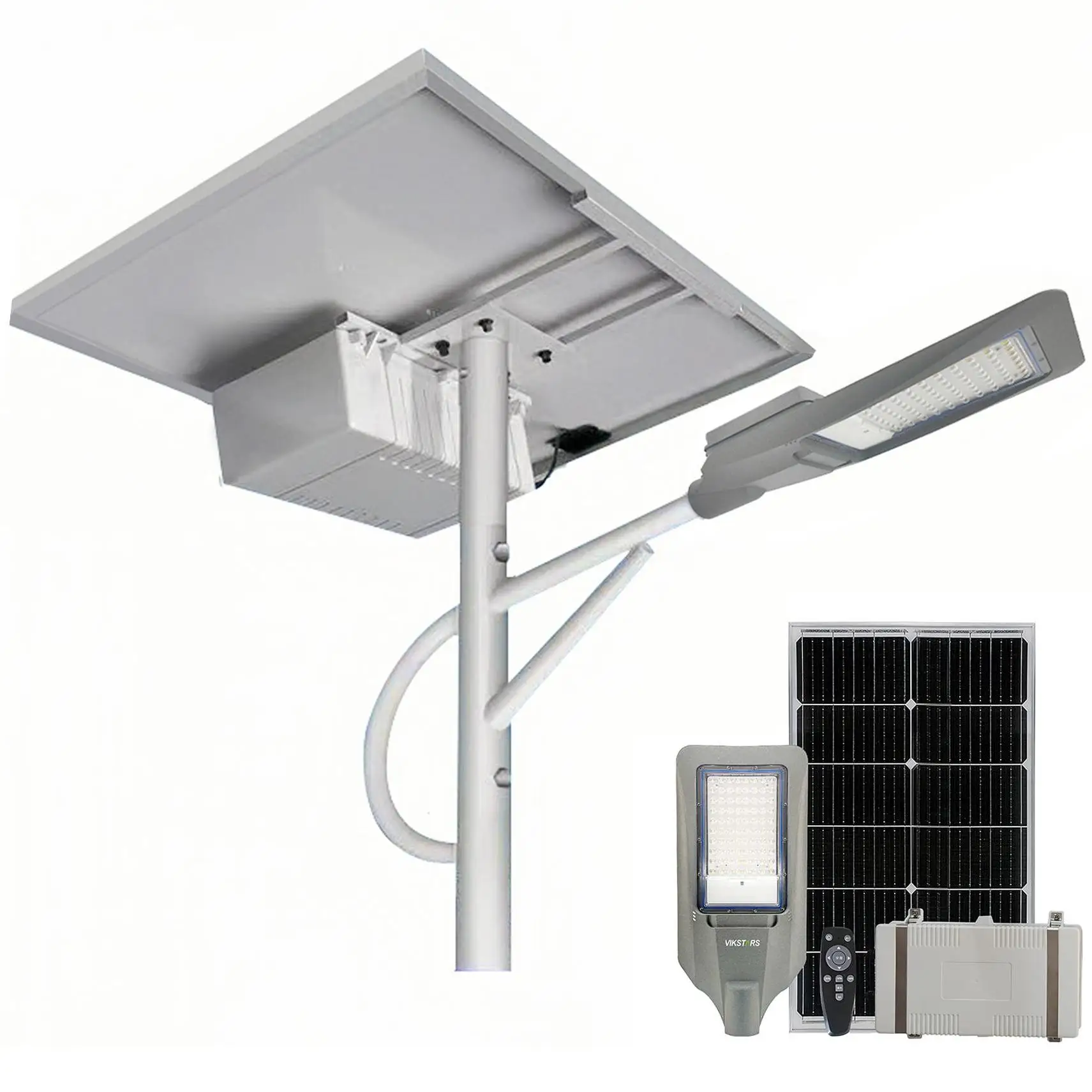

Customized Series--battery box outer lamp

1000w/1600w

3 Intallation Ways of Regular Series

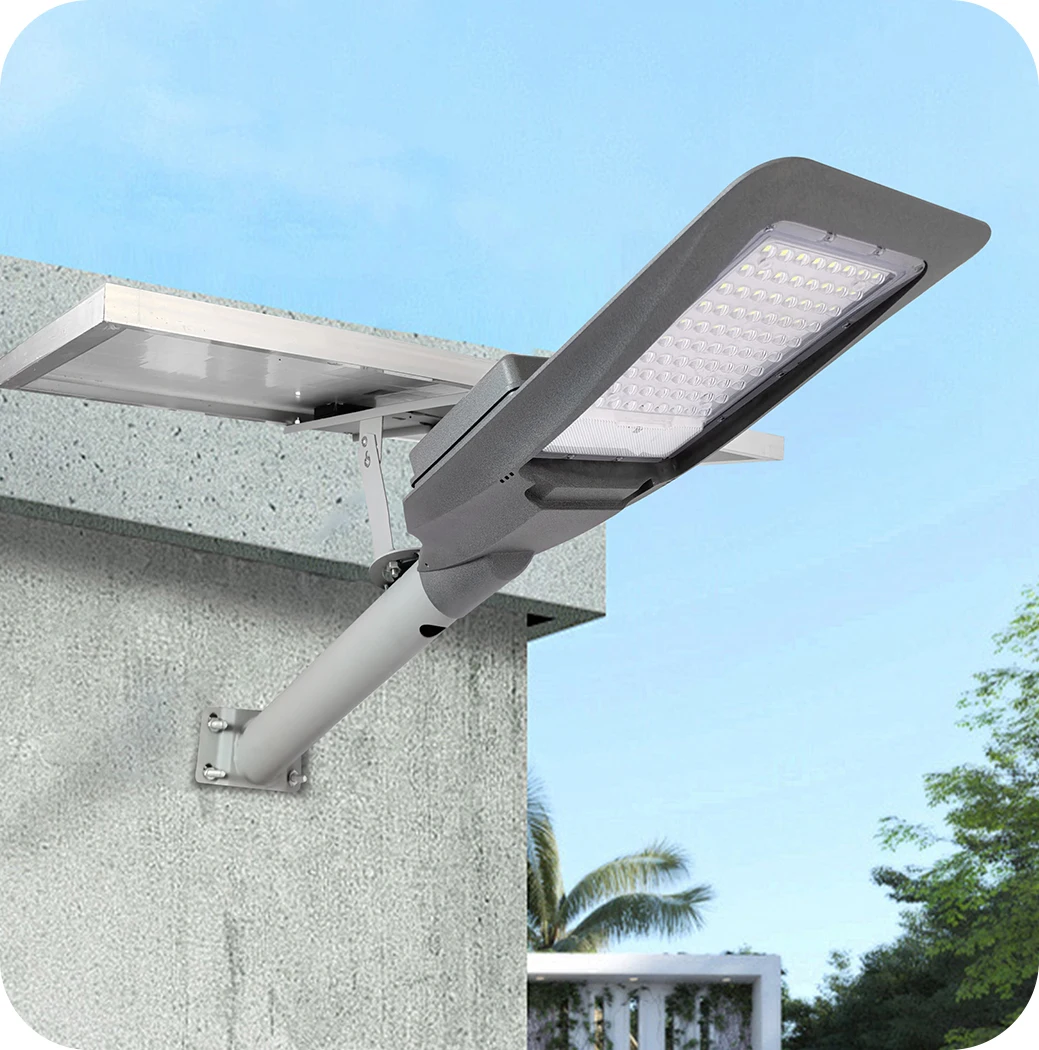

Wall mounted

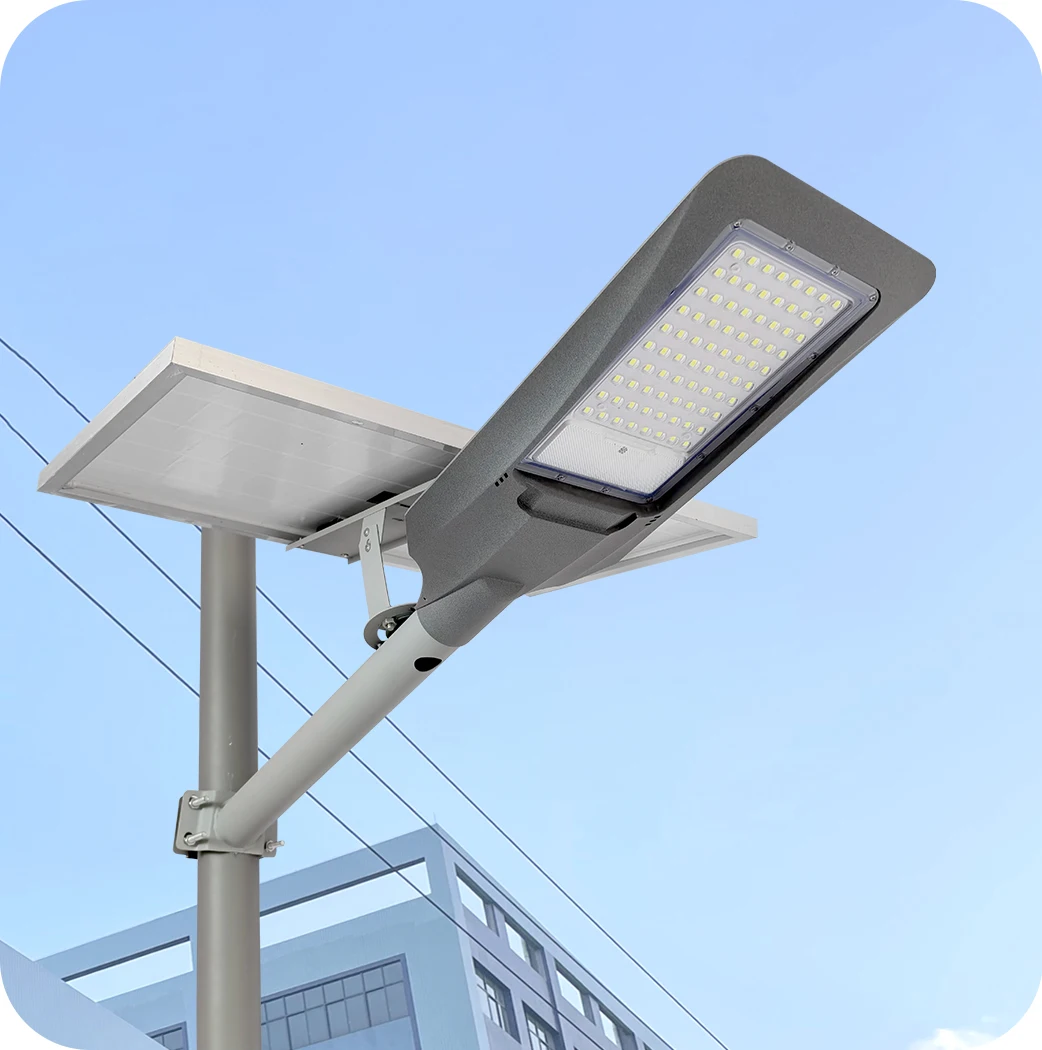

Pole Mounted

Hoop Mounted

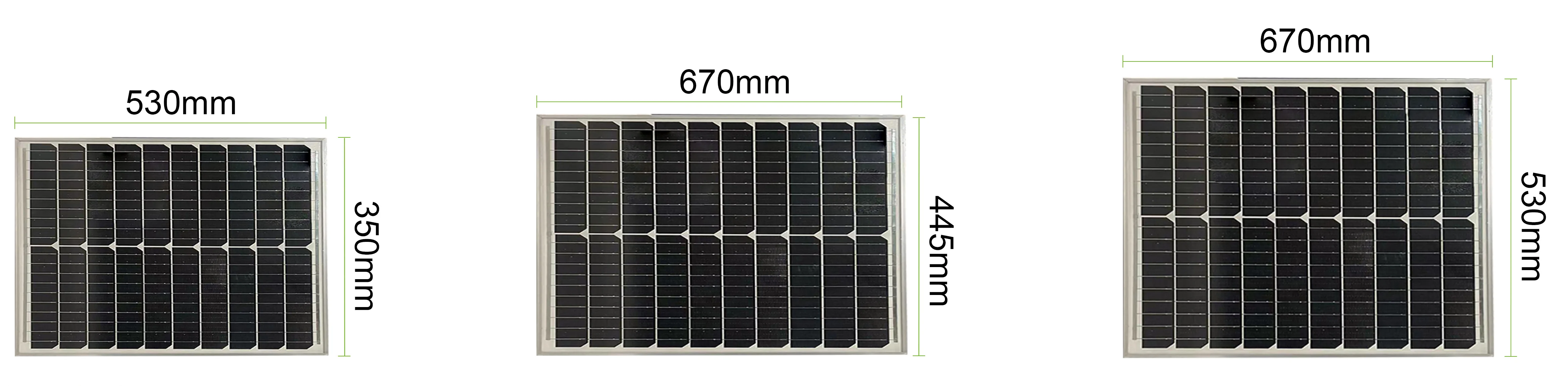

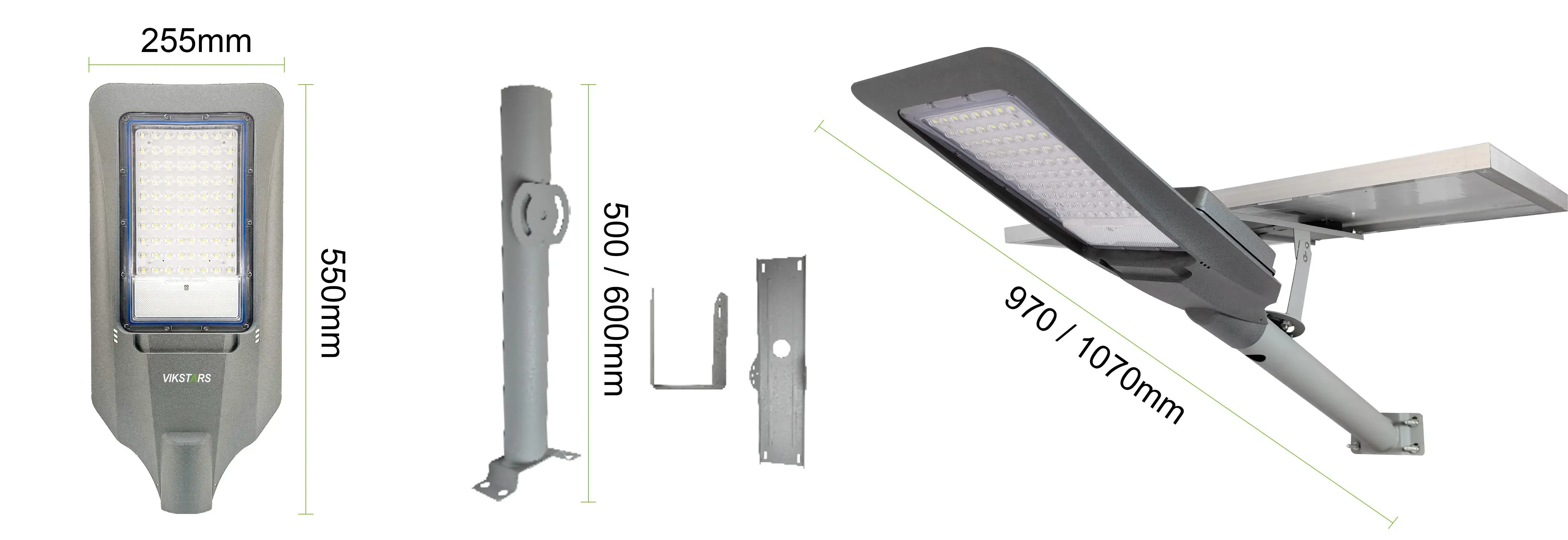

SIZEs

Whole series of same size

300w: 500mm length

500w: 600mm length

300w: total length 970mm

500w: total length 1070mm

Regular-300w

Regular-500w

Regular-600w

Custmized-1000w

Custmized-1600w

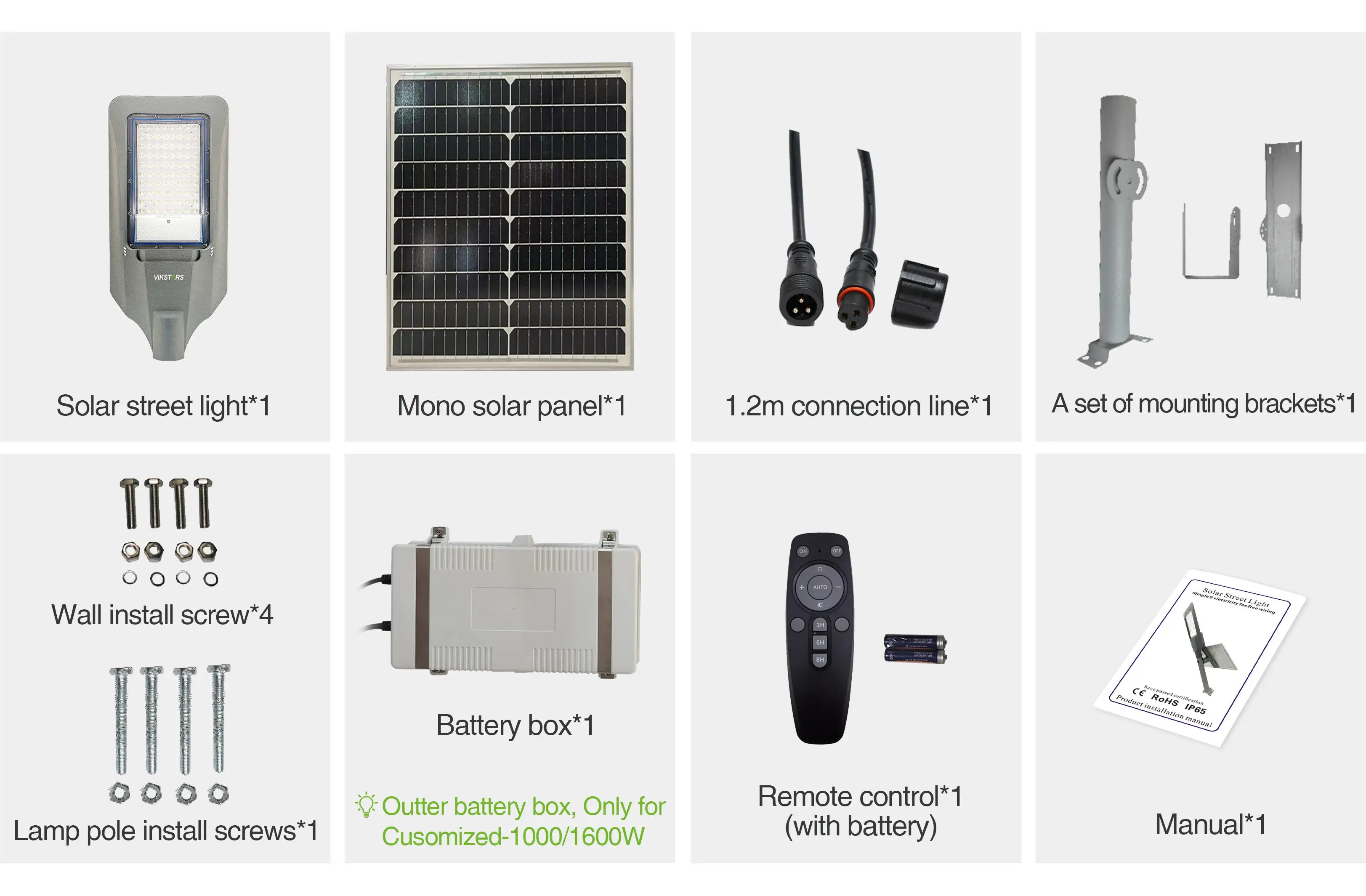

ACCESSORIEs

PACKING

Solution	Power	Carton Size	pc/ctn	N.W.	Specification
Regular	300W	610155435mm	1pc/ctn	5.00kg	Inner battery, integrated regular packing
	500W	720155495mm	1pc/ctn	6.50kg	Inner battery, integrated regular packing
	600W	/	/	/	Inner battery, larger size solar panel, customized packing according to the project
Customized	1000W	/	/	/	Outter battery box, larger size solar panel, customized packing according to the project
Customized	1600W	/	/	/

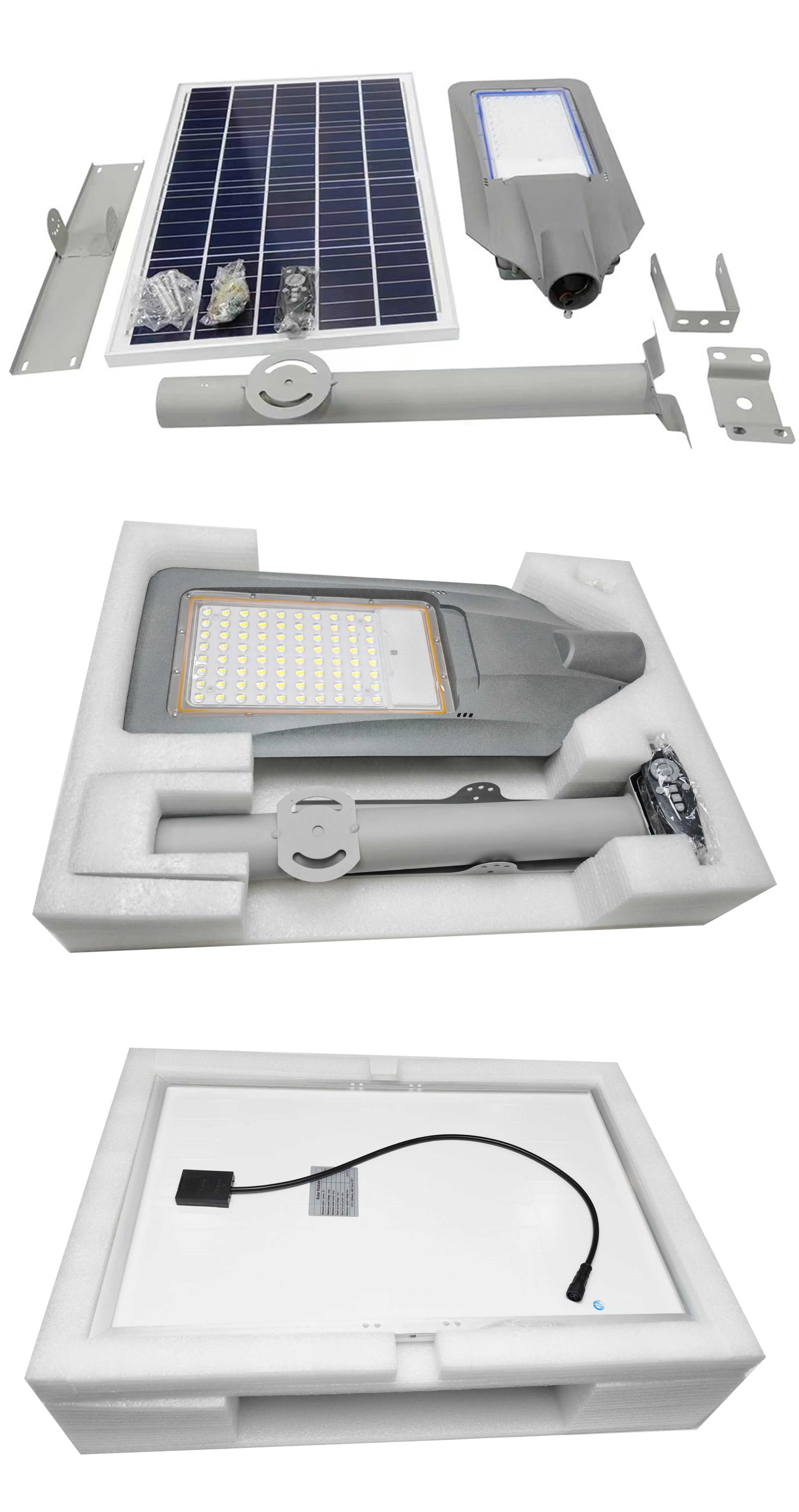

300W/500W-Regular Integrated Packing

600W with larger size solar panel, need to customize packing IP66 Solar Street Light 300W 500W 600W 1000W 1600W High Power Solar Street Light For Main Street Highway Light Solar

300W/500W-Regular Carton

600W with larger size solar panel, need to customzie carton

INTELLIGENT LIGHT CONTROL

AUTO CHARGE During the Day
At daytime, lamp auto charges
4-6 hours for full charge
also charge in rainy days

AUTO LIGHT UP At Night

Inner photocell detects darkness

Lamp auto lights up
can last 3-5 rainy days after full charge

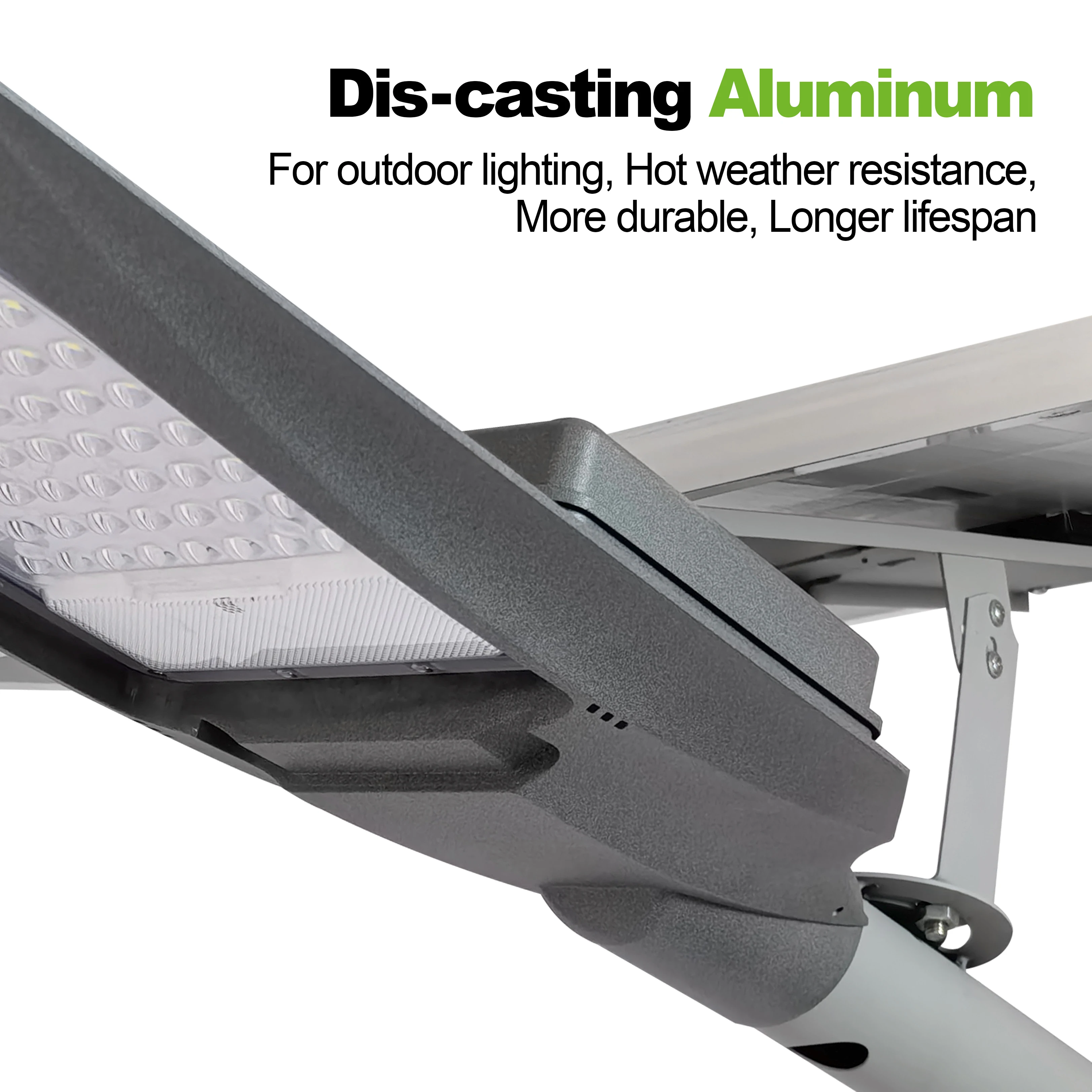

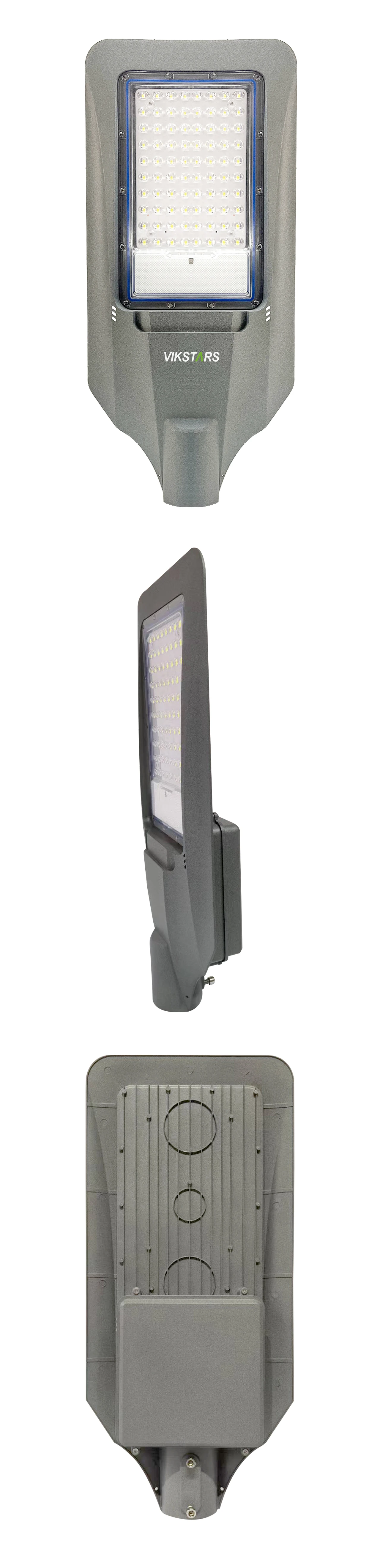

DETAILs

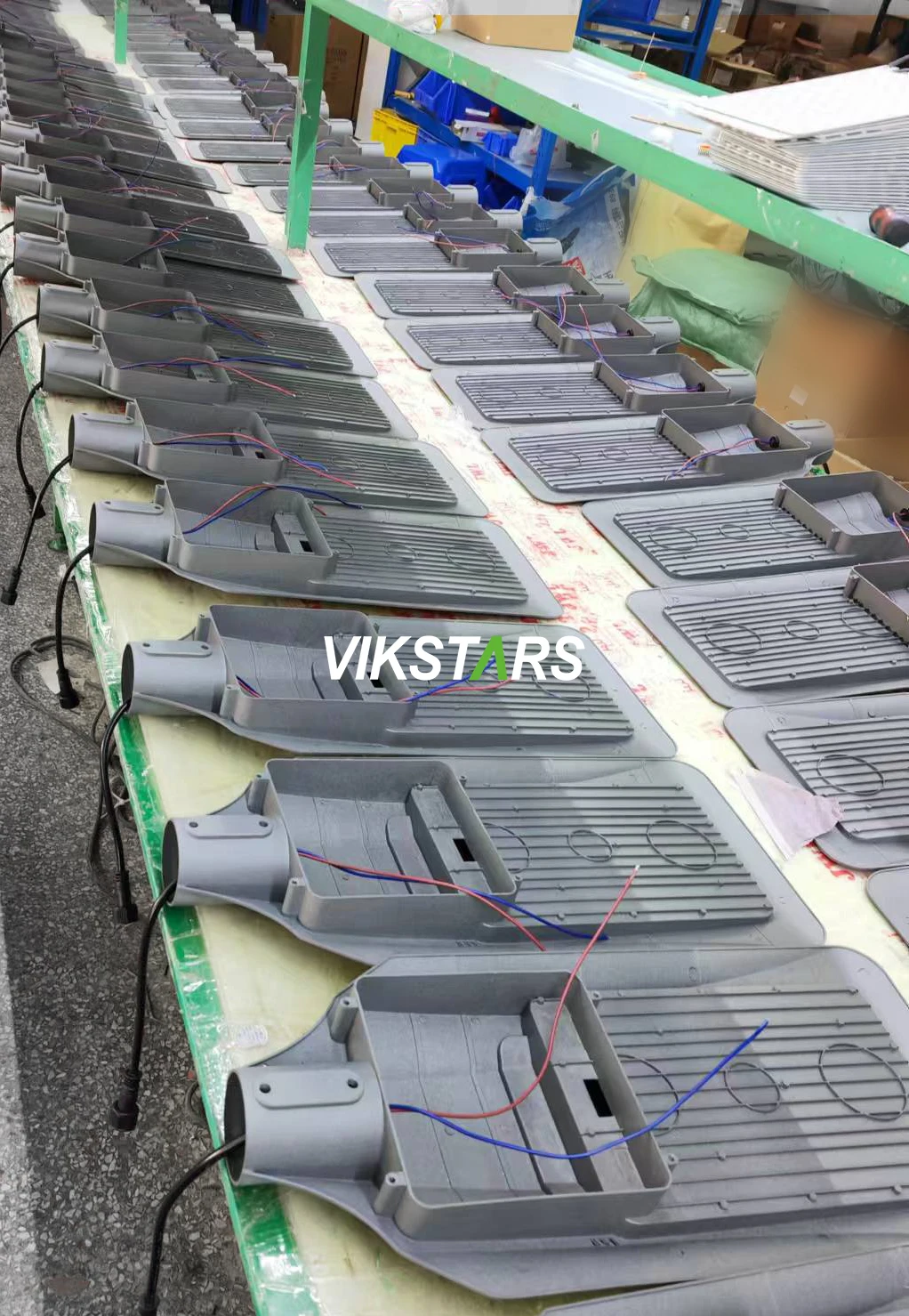

ORIGIN FACTORY

PROJECT CASEs

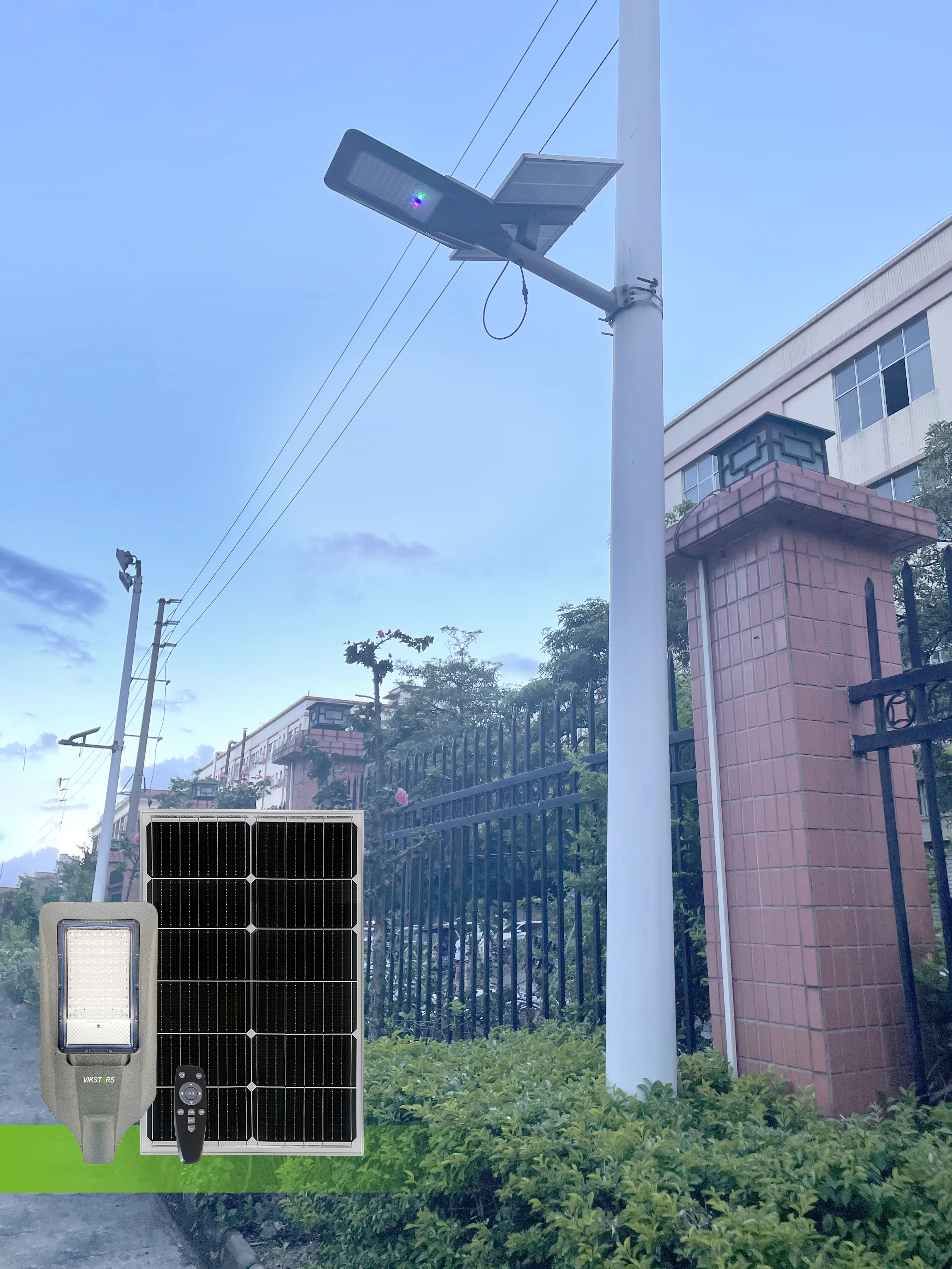

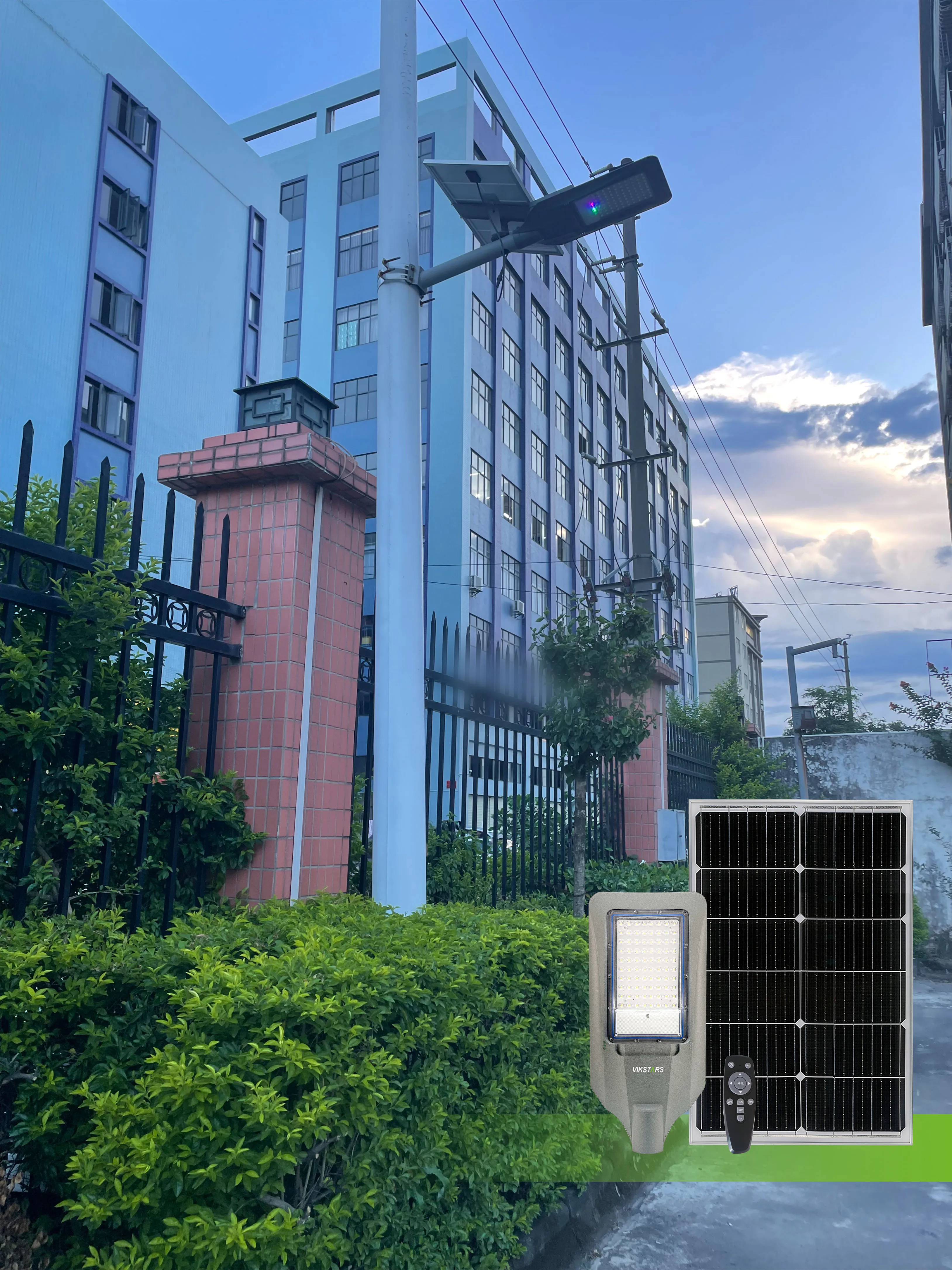

Industrial Park Install Live Photo

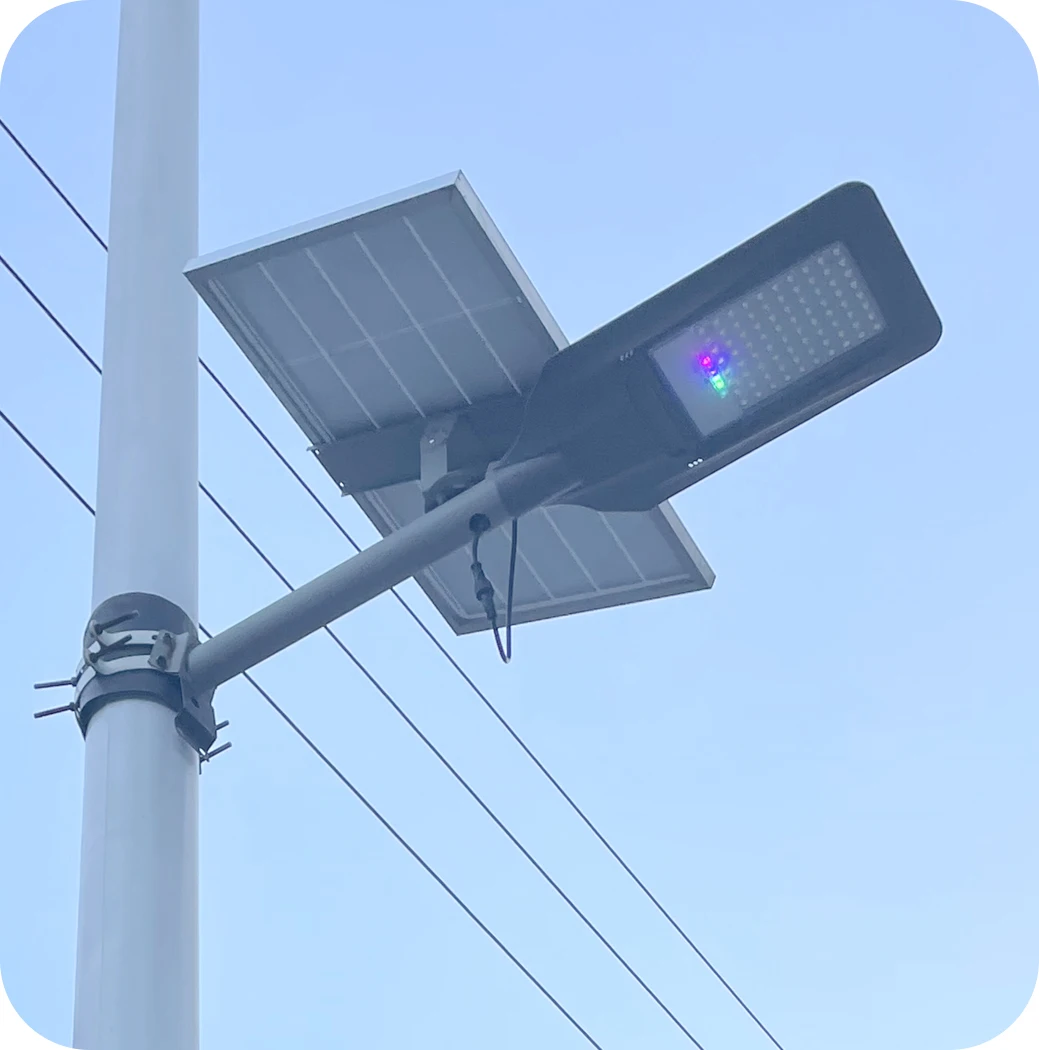

Regular-300w<hoop install>

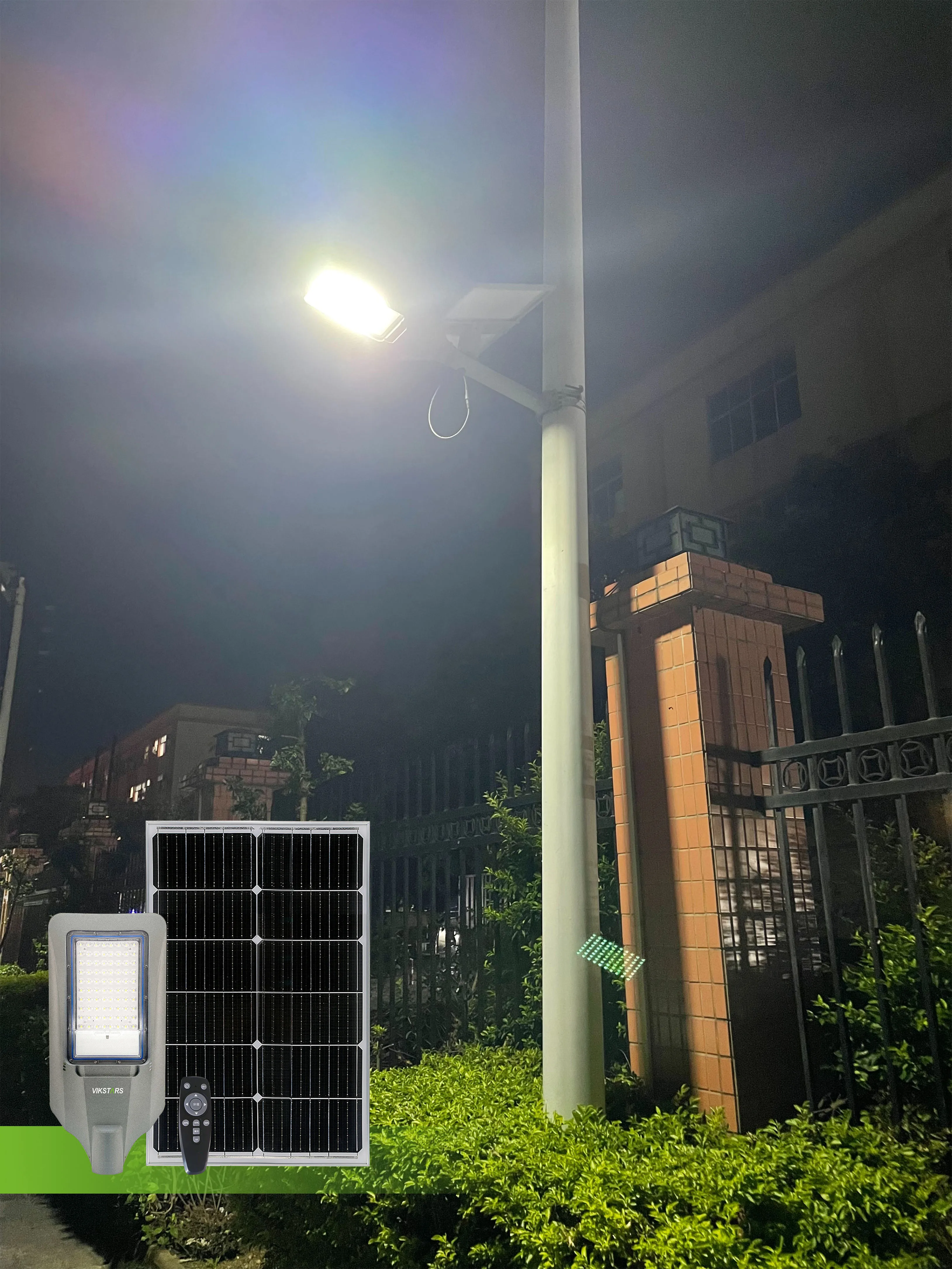

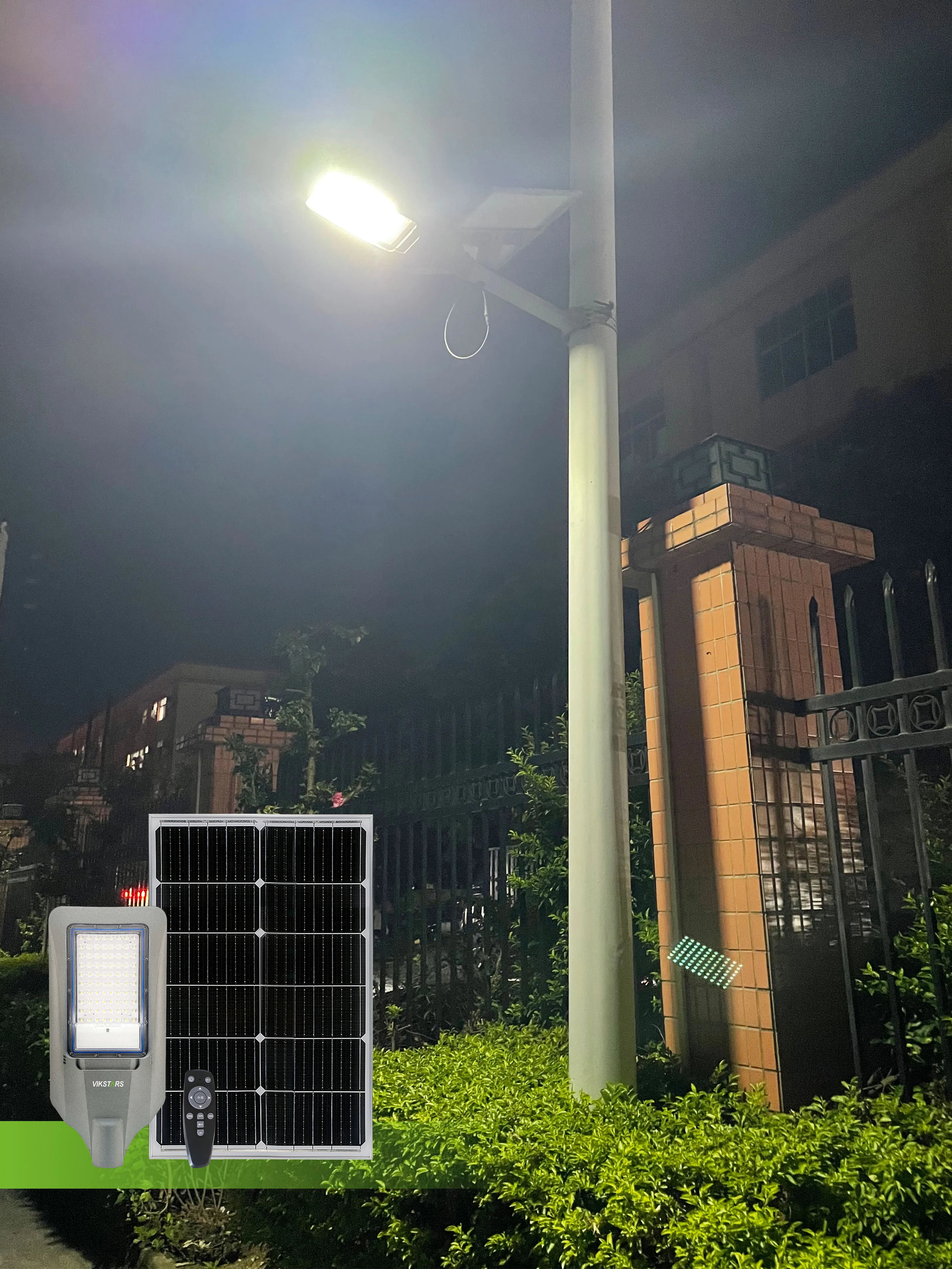

Industrial Park Night Live Photo

Regular-300w
4.5m Installation Height

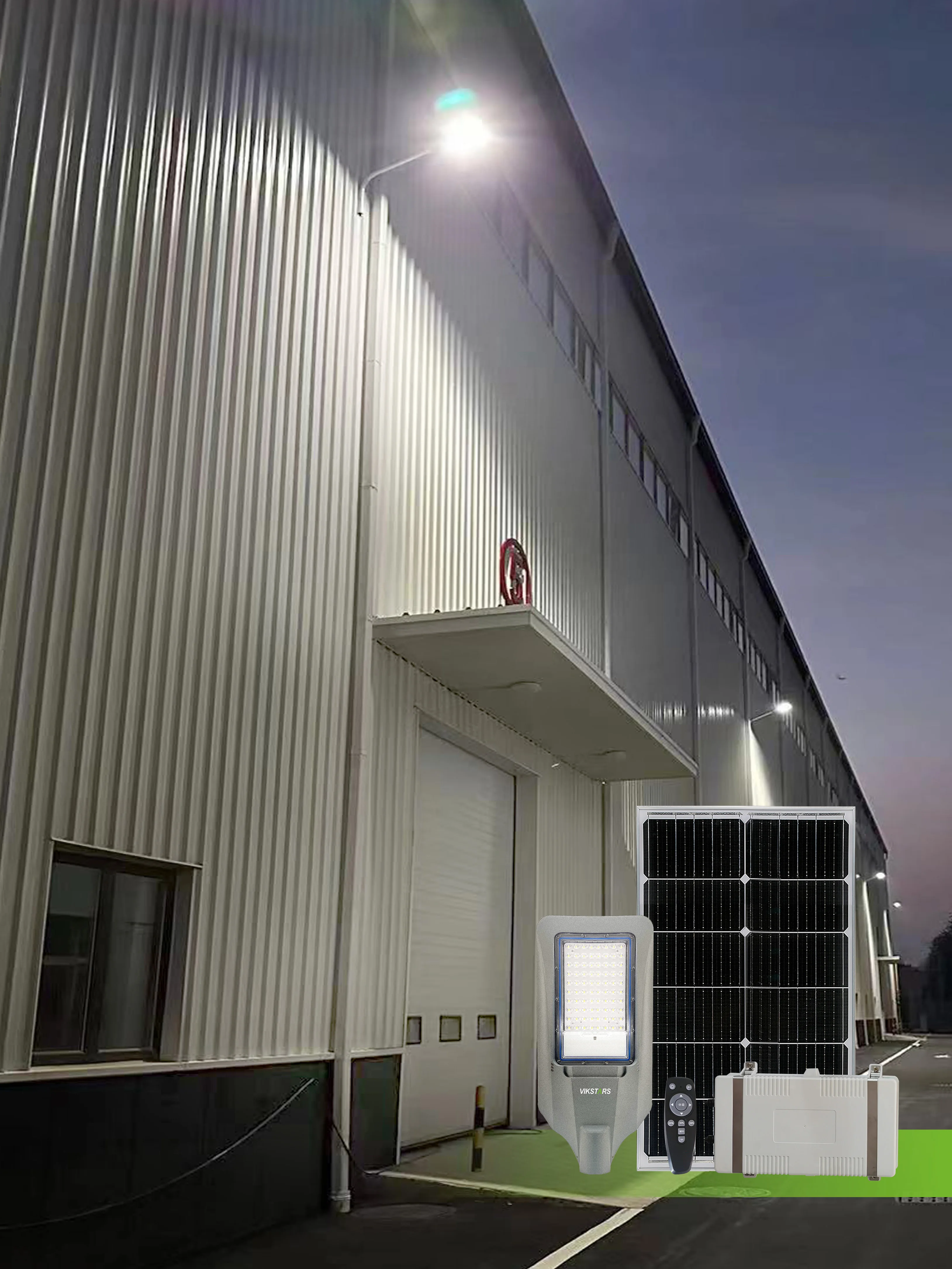

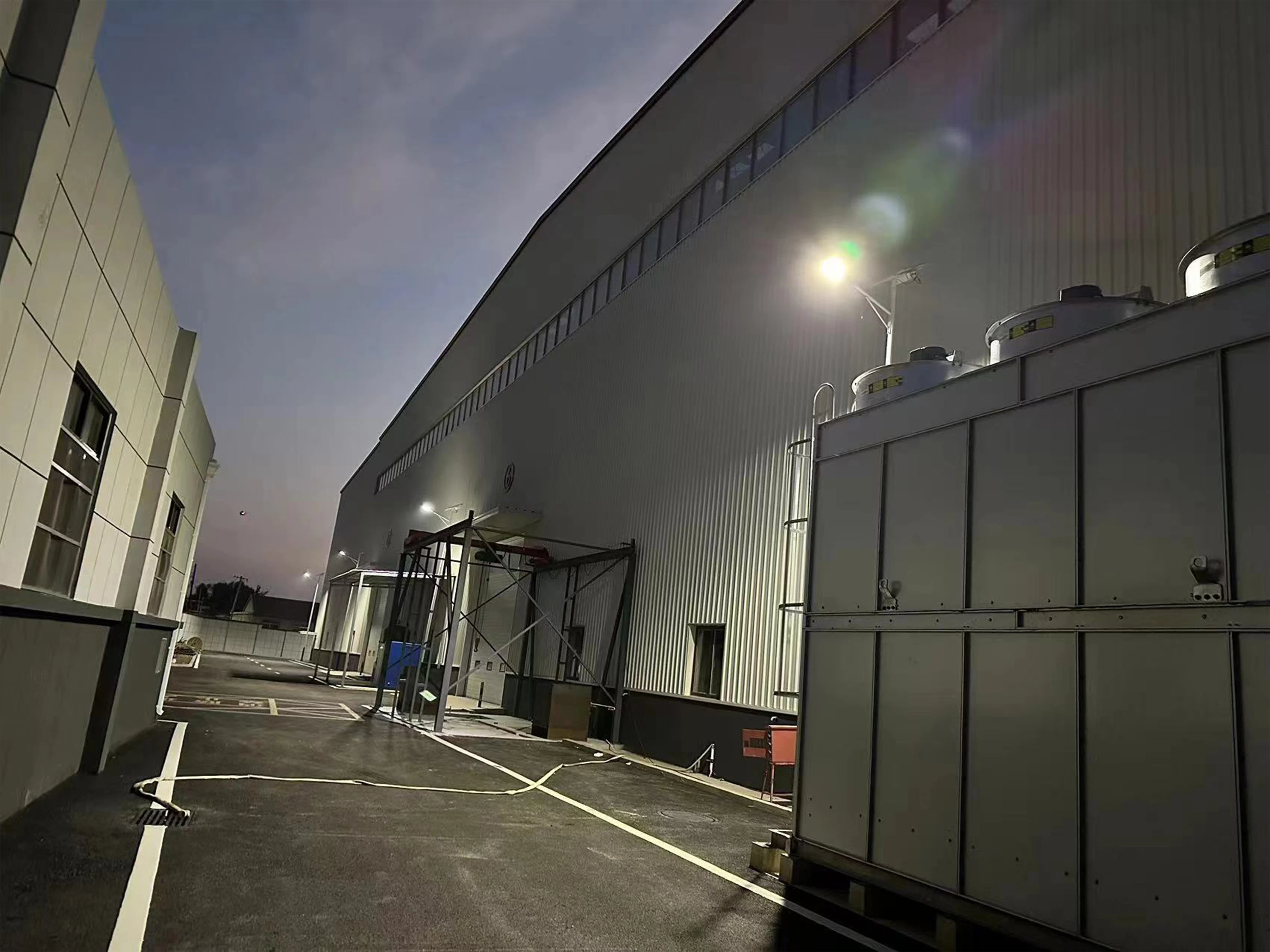

Outer Wall 9m Live Photo

Customized-1000w

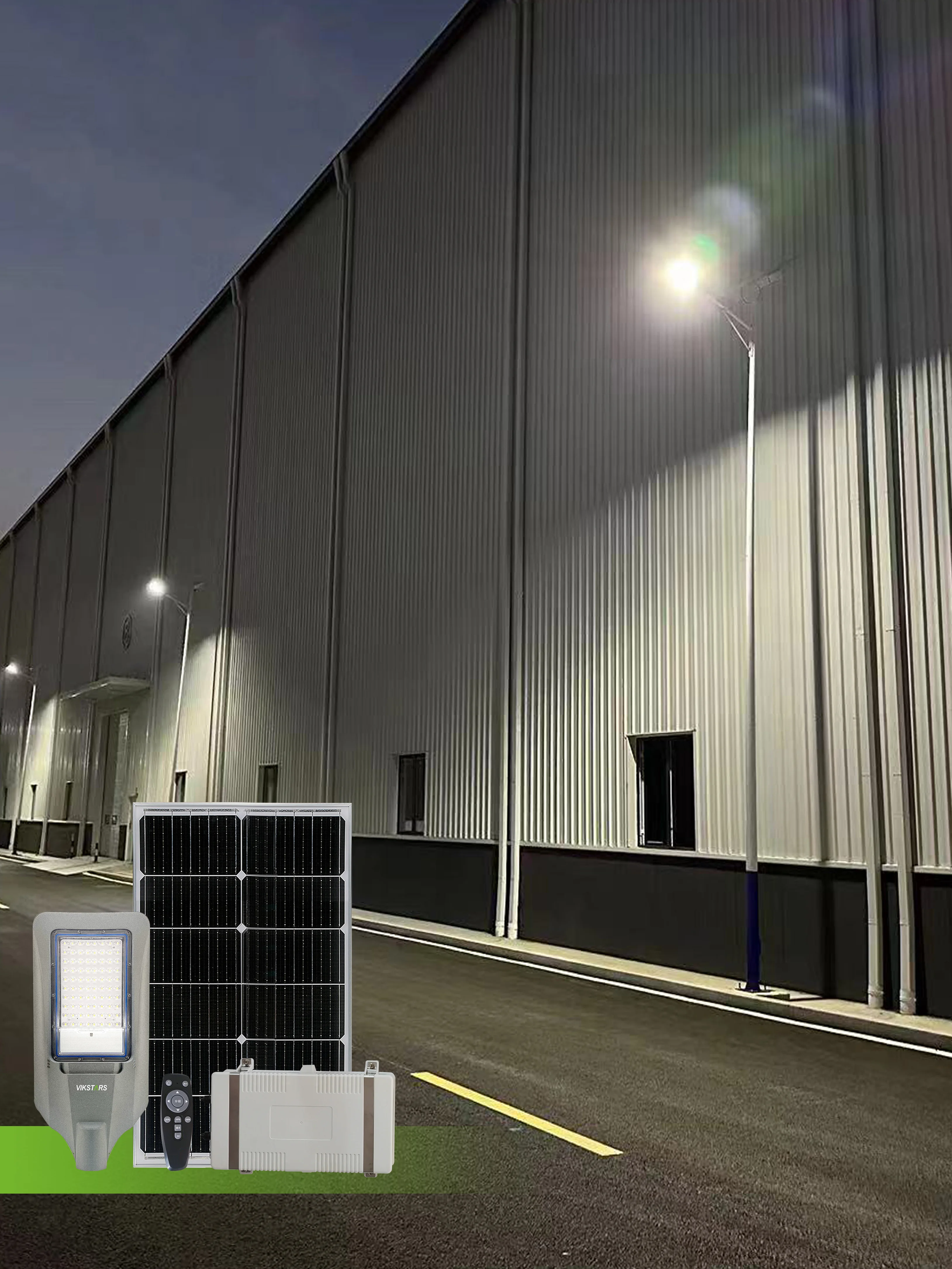

Factory Road 8m Live Photo

Customized-1000w <Outer Battery>

Factory Road 8m Live Photo-2

Customized-1000w <Outer Battery>
8m Lamp Pole Install
